mt32-pi Lite (WHITE) DIY KIT for MiSTer FPGA

mt32-pi is Raspberry Pi HAT of the Roland MT32 MIDI emulation.

Setup :

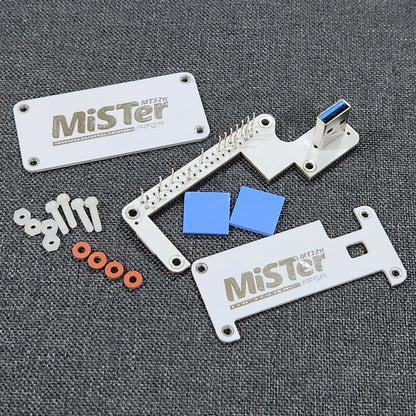

1. Insert Fabric Spacers (Thickness 1.5mm)

2. Install Main Board


3. Solder pins and cut short with a nipper


4. Install two heat pads (Must remove plastic tapes)


5. Install 1st heat sink


6. Install 2nd heat sink



Features :

• Compatible with Raspberry Pi Zero 2W w/o header (not included)
• Simple interface for mt32-pi (no buttons, OLED)
• Built-in USB 3.0 connector
• Two heat sinks and pads
• 8GB micro SD
