Autofire PCB DIY KIT for Sanwa OBSF-30/OBSC-30/ HORI Hayabusa

Autofire PCB implement the autofire function to arcade button.
Sanwa & HORI button is not included.

Setup :

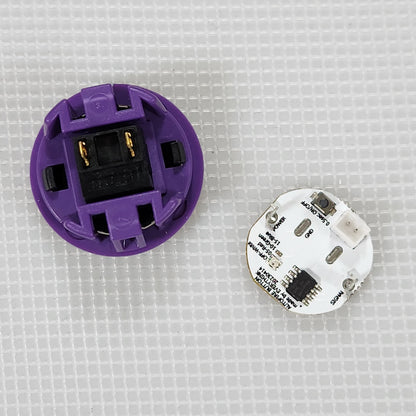

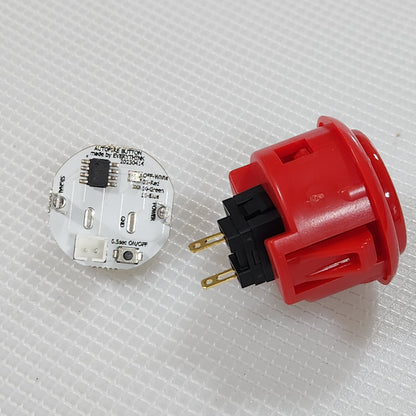

1. Place Autofire PCB on the button and solder two brass pins


2. Connect the POWER wire, and then connect the power wire to 5V or 3.3V on the control board. (POWER wire is included on package)


3. Connect the GND wire


4. Connect the SIGNAL wire


5. Connect external button for adjust autofire function (OPTION)



Features :

• Compatible with Sanwa OBSF-30/OBSC-30 button (not included)
• It also compatible with HORI 30mm button (not included)

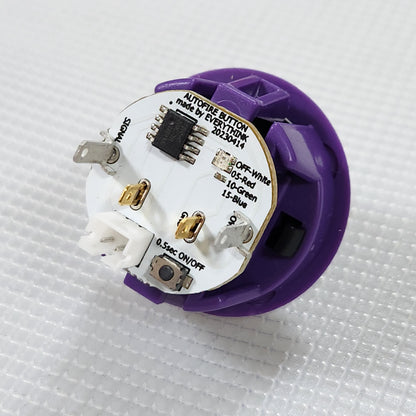

• LED indication of current status
  WHITE : autofire off (works as normal button)
  RED : 5 pushes per second
  GREEN : 10 pushes per second
  BLUE : 15 pushes per second
• Built-in button to adjust autofire function. (turn on/off, autofire rate)
• POWER wire (30cm)

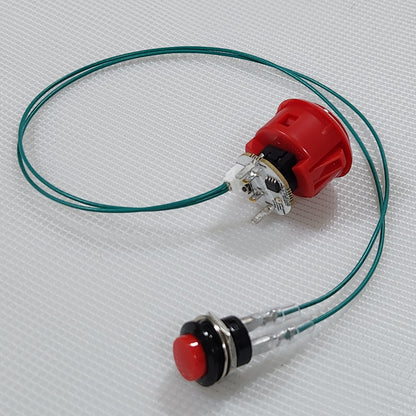

• 16mm external buttons to adjust autofire function. (40cm)

• DV 3.3V ~ 5V is needed to work
