JAMMA Interface for Raspberry Pi - Compatible with RGB-Pi

JAMMA Interface for Raspberry Pi - Compatible with RGB-Pi

$52.49 USD
$52.49 USD
Sale Sold out

This board makes you to use the Raspberry Pi in JAMMA Arcade Cabinet.
VGA666 and MCP23017 interfaces and RGB-Pi (OS2/OS4) is compatible with this board.

Raspberry Pi is not included



Setup :

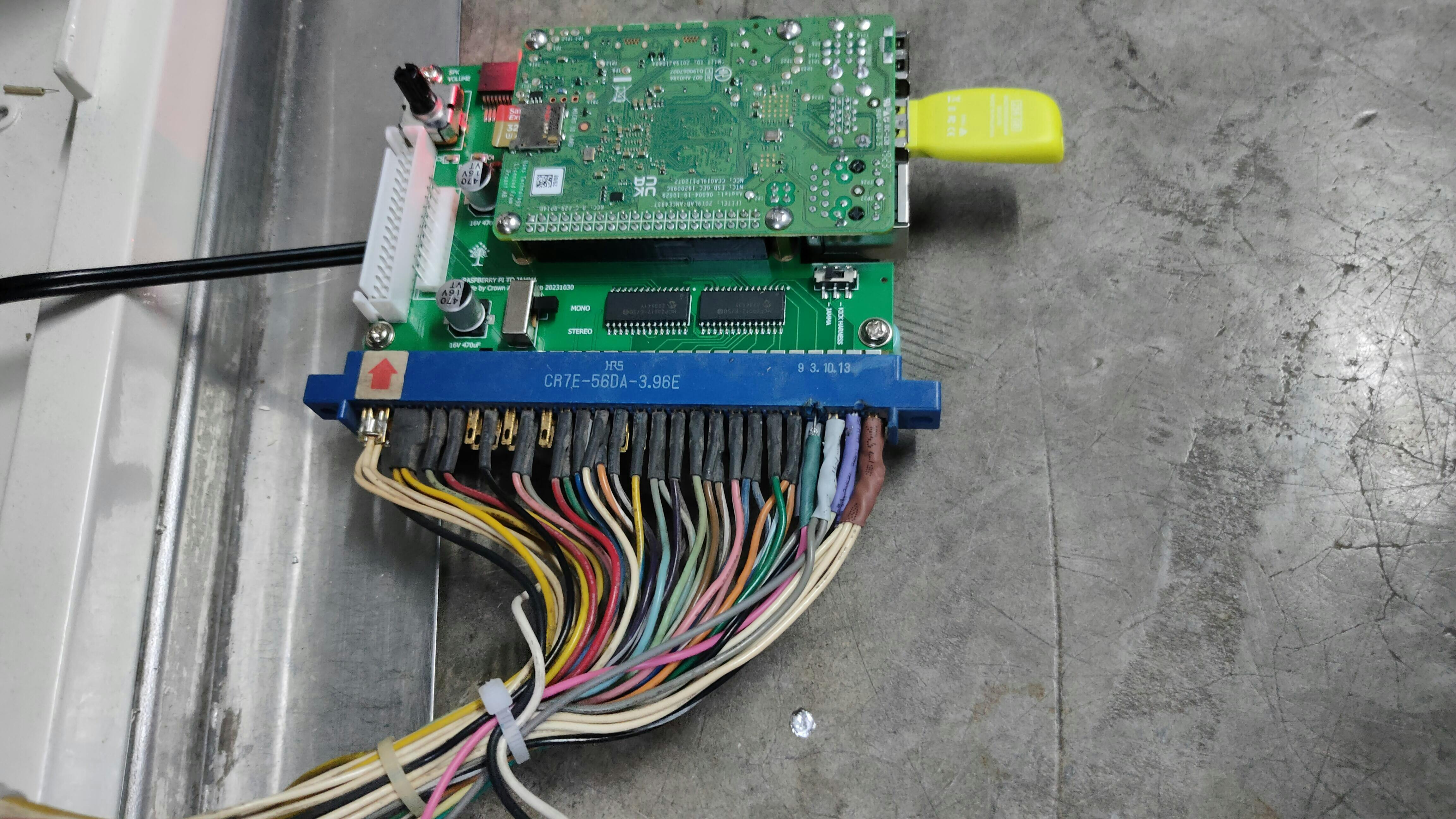

  1. Mount the Raspberry Pi upside down with the bottom facing up. You can also mount it with the heatsink attached

  2. Connect the JAMMA harness to the board. Note the location of the key slot



Features :

  • Compatible with Raspberry Pi 3B+ & 4
  • Can be mounted with heatsink attached
  • Cooling fan to prevent the Raspberry Pi from overheating
  • Buil-in AMP and Volume Knob to work speaker in Arcade Cabinet
  • Support Stereo Sound output on MVS Cabinet
  • Les Lock to keep this board secure in the Arcade Cabinet
View full details

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Dave K.
The Crown Arcade Pi to Jamma interface is pretty awesome!

Having out of the box compatibility with RGB-Pi drivers and linux distributions, while also adding convenient headers for CPS2 kick-harness, all a similar price point is pretty awesome. Great work!

M
Martin Wienecke
Best Jamma Interface for Raspberry Pi

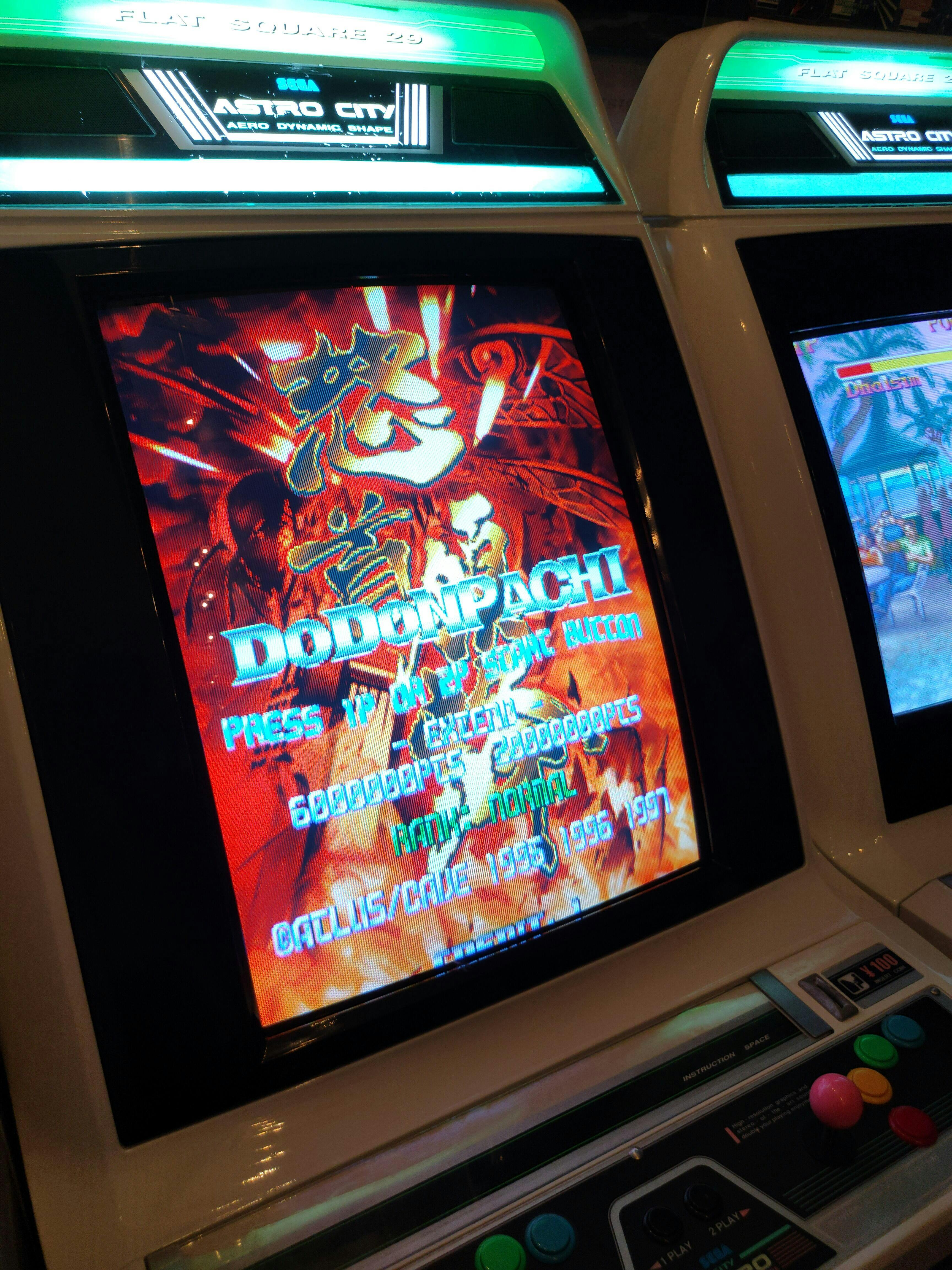

This interface is a great piece of hardware design. It works perfectly with a Pi4 in my Sega Blast City. Video, sound and controls are connected via gpio. No need for an audio or usb cable. The built in fan keeps my Pi4 clocked at 2000Mhz at 30 degrees Celsius. Best Jamma to Pi interface available 👌👌👌👌👌 5 of 5 stars
