A/V MOD KIT for Original Nintendo Famicom

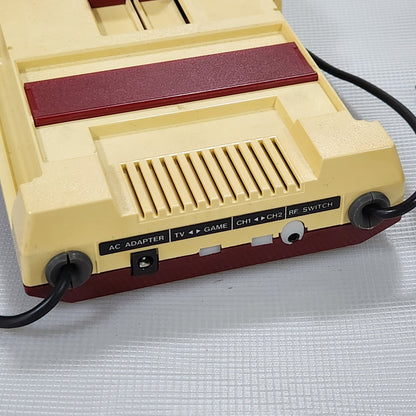

A/V MOD KIT makes Original Nintendo Family Computer to output AV Composite Video.

Removing the existing POWER & RF board and install this board completes the job. No cutting of housing is required to install connector on the your precious Family Computer.

Setup :

1. Remove of phillips screws and bottom cover lifts right off
2. Disconnect two controllers from the board
3. Remove of all phillips screw from the mainboard and power board. Remove two more phillips screws of power switch
4. On the power board, desolder the 7 wires that connect the motherboard to the power board

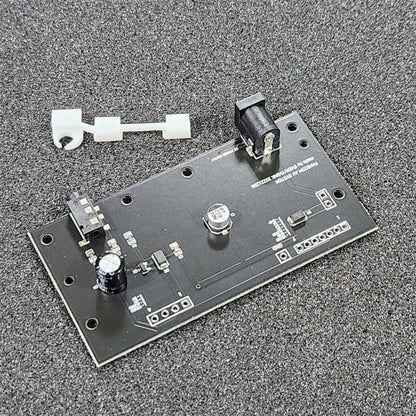

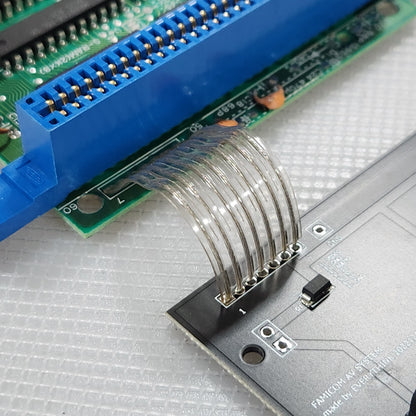

5. Place A/V MOD board and solder 7 wires on it.


6. Solder Line of Slide Switch


7. Place 3D printing for gap filling and Secure controllers, motherboard and A/V MOD KIT with phillips screws


8. Close the bottom cover and screw it with phillips screw

Features :

• Compatible with Nintendo Family Computer (1983)
• A/V MOD board, 3D printing for gap filling, AV cable (1.5 meter)
• Remove a lot of jailbar.
• 5V/1A DC adapter (EU/JP/US)
• DO NOT USE ORIGINAL FAMICOM 10V PSU
• USE ONLY 5V ADAPTER
